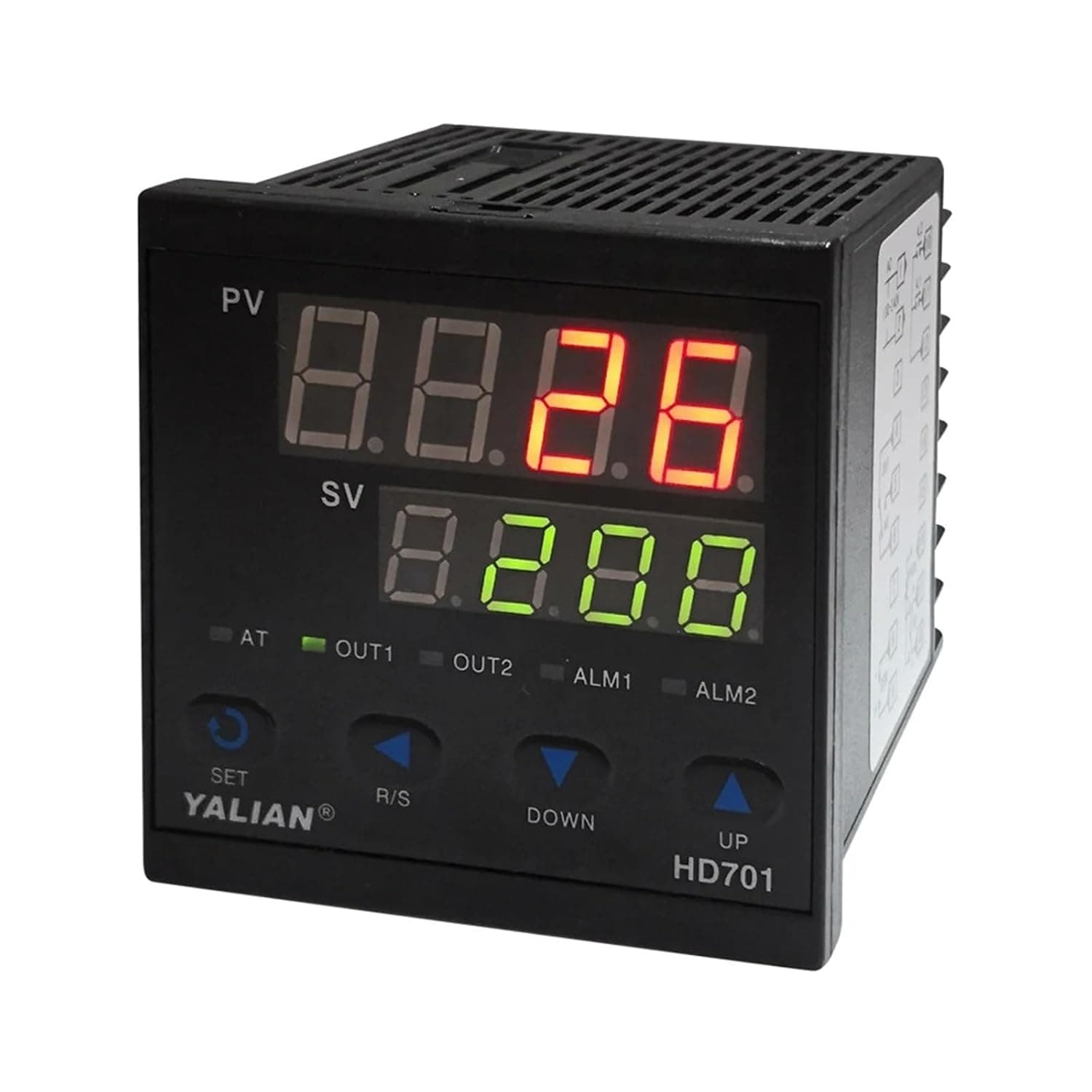

Pid Temperature Controller Industry thermoregulator AC 100 to 240V Max

Temperature Controllers Product Features: Dual display for both set temperature and process temperature Size, 48*48mm, 72*72mm, 48*96mm, 96*96mm Universal input, support 10 different types ofthermocouples and RTD inputs by customers selected at panels. Uses it in Heating Control as well as for Cooling control Auto-tune function can find the best PID parameter automatically Displays temperature inCelsius(°C) Uses it for Kiln,Furnace,Oven,Incubator temperature controL It is used in various industries to control and monitor process temperat Product Main Specifications: Input Type Thermocouple: K, E, S, R, J, T, B RTD: Pt100, Cu50 ( The Usercan set the input signal type according the requirement. ) Input Range 0 ~+1372ºC K (this is the default setting. Usercan set thetemperaturerangewhich you wanted.) Display Two lines, Four digitsin Celsius °C. Display Resolution 1°C, or 0.1°CifPt100 input Accuracy +/-0.5% or +/-1 unit of full input range Control mode PID,ON/OFF Control Output Relay contact: 3A at 240 VAC. Alarm Alarm 1 ( Upper-limit bias alarm , User can change to beother Alarm Mode.) Power Consumption <;2 Watt Power Supply 100~240V AC, 50/60Hz. Item outline Dimensions HD101 48*48*70mm HD40248*96*70mm HD70172*72*70mm HD90196*96*70mm Mounting Hole Size HD10146*46mm HD40246*93mm HD70169*69mm HD901 93*93mm Model Number : HD101 HD401 HD701 Display Size : 2.0 - 3.9 Inches Origin : Mainland China Max Measuring Temperature : 120°C & Above Style : Embedded Usage : Industrial alarm : 1 group alarm display : 2 lines display model : HD101 HD401 HD701 HD901
